Features:

Available 24, 30, or 36" configurations

• Has up to a 6,000ft-lb capacity

• Can be configured to travel in rail from most major manufacturers

• Can be integrated with electric or pneumatic tractor drives

• Optional Features:

  • Infinitely adjustable hard stops, up to 300 degrees of rotation

  • Rotation brake

  • Adjustable zone limit switches

  • Festooning brackets

  • Cam latch for fixed rotational positions

Benefits:

• Provides easy manipulation on XY rail systems

• Provides force and torque reactions

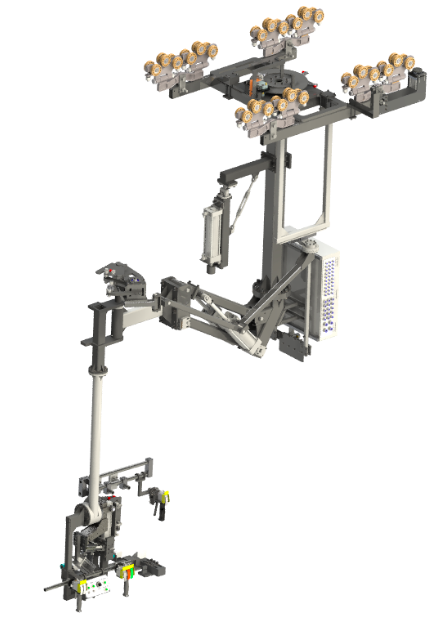

Door Install Lift Assist

Problem:

• Need (4) articulating arms to assist the installation process of the completely built doors to the ethical of (4) different models.

• Current arms could only accommodate (3) models

Solution:

• X-Y Bridge mounted lift assist to install doors to 4 different models at any given time with no end tool changeover or adjustment.

Features:

• Tool mounted to a double runaway. (No Bridges)

• Assists can handle at a minimum a 90 pound door and exited out 4’ from carriage center.

• The bar used to keep angle of end tool constant throughout rotation of tool.
